Description

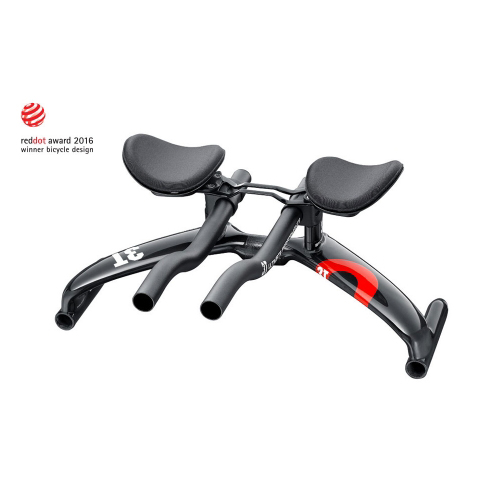

The bullhorn bar was introduced to the cycling world by 3T on Francesco Moser’s hour record bikes. Its design principle hasn’t significantly changed since, until now. The Revo seems so obvious, now, providing a better, safer and more powerful grip for the rider. Then again, good ideas always seem obvious after the fact.
| Wing material | Unidirectional carbon |
| Extension material | Alloy |
| Cradle material | Alloy |
| Pad material | Neoprene |
| W1 base bar width (c-c) | 400mm |
| W2 Outside pad width | 240-340mm |
| W3 Center pad width | 130-230mm |
| S1 Pad stack | 30-97mm |
| R1 Pad reach | 20-70mm |
| R Grip inside reach | 72mm |
| D Grip drop | 46mm |
| Clamp diameter | 31.8mm |
| Extensions | S-bend |
| Cradle | New comfort |
| Weight | 770g (minimum stack) |
| Finish | Stealth black or black with red accents |
